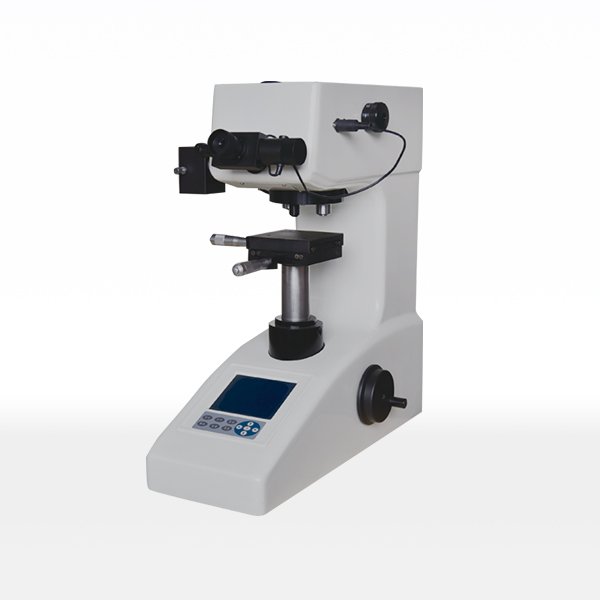

HVS-1000 Digital Micro Hardness Tester (Vickers and Knoop)

The HVS-1000 is a digital micro hardness tester that measures Vickers hardness at low test forces on small, thin and surface-layer specimens. Instead of a large bench indentation it uses a diamond pyramid indenter and a microscope to measure the tiny indent, which is how hardness is measured on nitrided layers, thin sheets, coatings and individual microstructural features.

Micro hardness testing is demanding because both the indentation and the measurement are very small, so the machine must combine a frictionless spindle, a stable coordinate stage and a high-quality optical system. The HVS-1000 brings these together with an automatic test process, so the operator does not introduce error by handling the indent measurement by hand.

Technical Specifications

Optics, spindle and the automatic test process

The frictionless spindle gives a high test-force accuracy, and the high-precision optical measurement system with a precise coordinate test bench lets the same indent be located and measured reproducibly. The measuring system offers 400x and 100x magnification with a minimum detection unit of 0.5 µm, which is what makes a light-load Vickers indent measurable. Because the test process is automatic and simple to operate, human measurement error is reduced, and the precision complies with GB/T 4340.2, ISO 6507-2 and ASTM E384. ISO 6507-1 covers Vickers hardness testing in general.

Forces, scales and optional Knoop

The HVS-1000 provides eight test forces from 10 gf to 1000 gf, so the load can be matched to the feature being measured – from a hard coating that would crack under a heavier load to a softer layer that needs a larger indent. A Knoop indenter is available as an option for Knoop hardness testing, and a CCD camera and image processing system can be added to measure the indent on screen and store the image. The 90 mm maximum sample height and 95 mm throat accommodate a wide range of prepared specimens and mounted samples.

Applications

The HVS-1000 is used for the micro hardness testing of nitriding layers, ceramics, steel and non-ferrous metals, of thin plate, metal sheet, electroplating layers and tiny test pieces, and for measuring the depth of carburized, decarburized and quench-hardened layers. It is suitable for the Vickers measurement of parallel planes and of tiny parts and ultra-thin parts where a conventional tester is too coarse. The standard configuration includes a coordinate test bench, a thin-shaft bench, a thin-plate bench, flat pliers, a diamond pyramid indenter, two standard microhardness blocks and a printer.

Frequently Asked Questions

What is a digital micro hardness tester used for?
It measures Vickers (and optionally Knoop) hardness at low test forces on small, thin or surface-layer specimens, such as nitrided layers, ceramics, thin sheets, plating layers and individual microstructural features.

What is the measuring range and test force of the HVS-1000?
The measuring range is 5-3000 HV, with eight test forces from 0.09807 N to 9.807 N, which correspond to 10 gf up to 1000 gf.

Which standards does the HVS-1000 follow?
Its precision complies with GB/T 4340.2, ISO 6507-2 and ASTM E384, and Vickers hardness testing in general is covered by ISO 6507-1.

Does the HVS-1000 support Knoop hardness testing?
Yes. A Knoop indenter is available as an option, and a CCD camera and image processing system can also be added for on-screen measurement and image storage.

How is the micro indentation measured?
It is measured through the machine’s high-precision optical system, which offers 400x and 100x magnification with a minimum detection unit of 0.5 µm, on a precise coordinate test bench for reproducible location of the indent.
