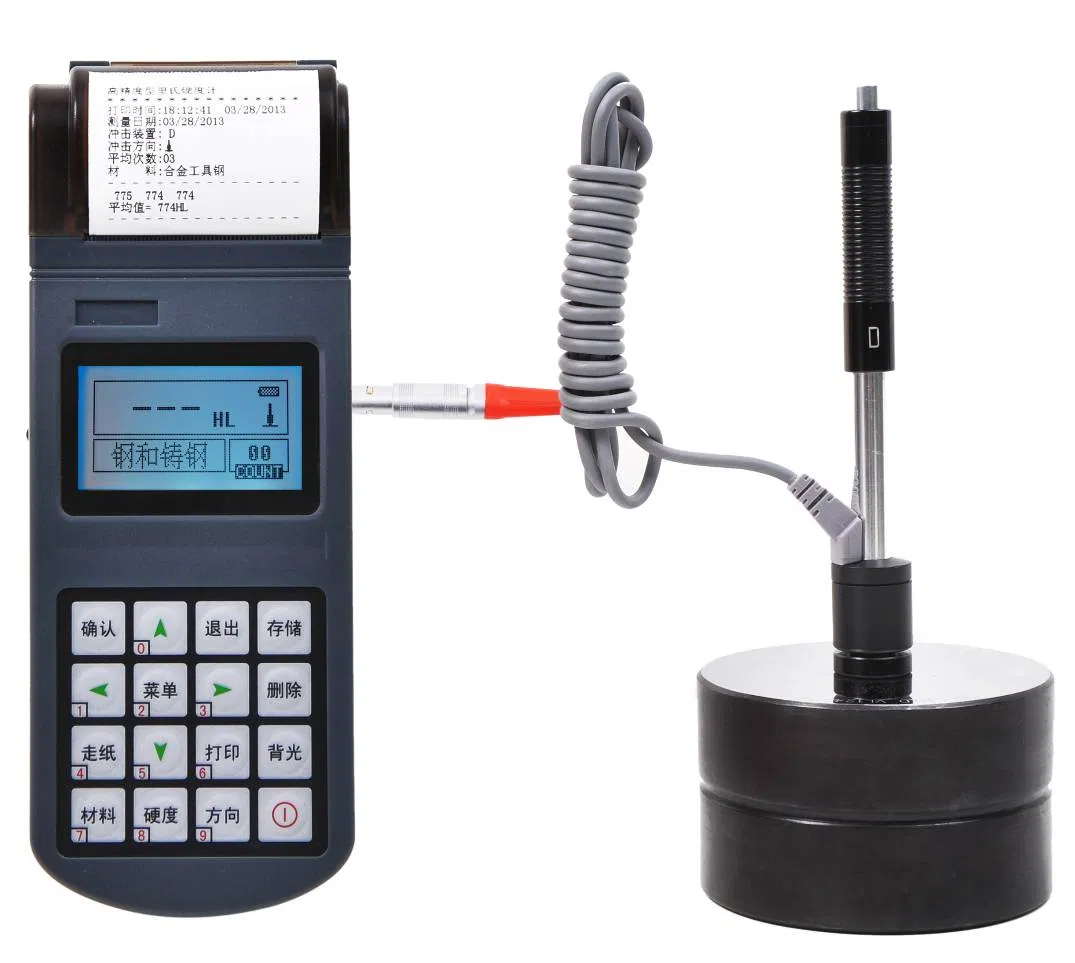

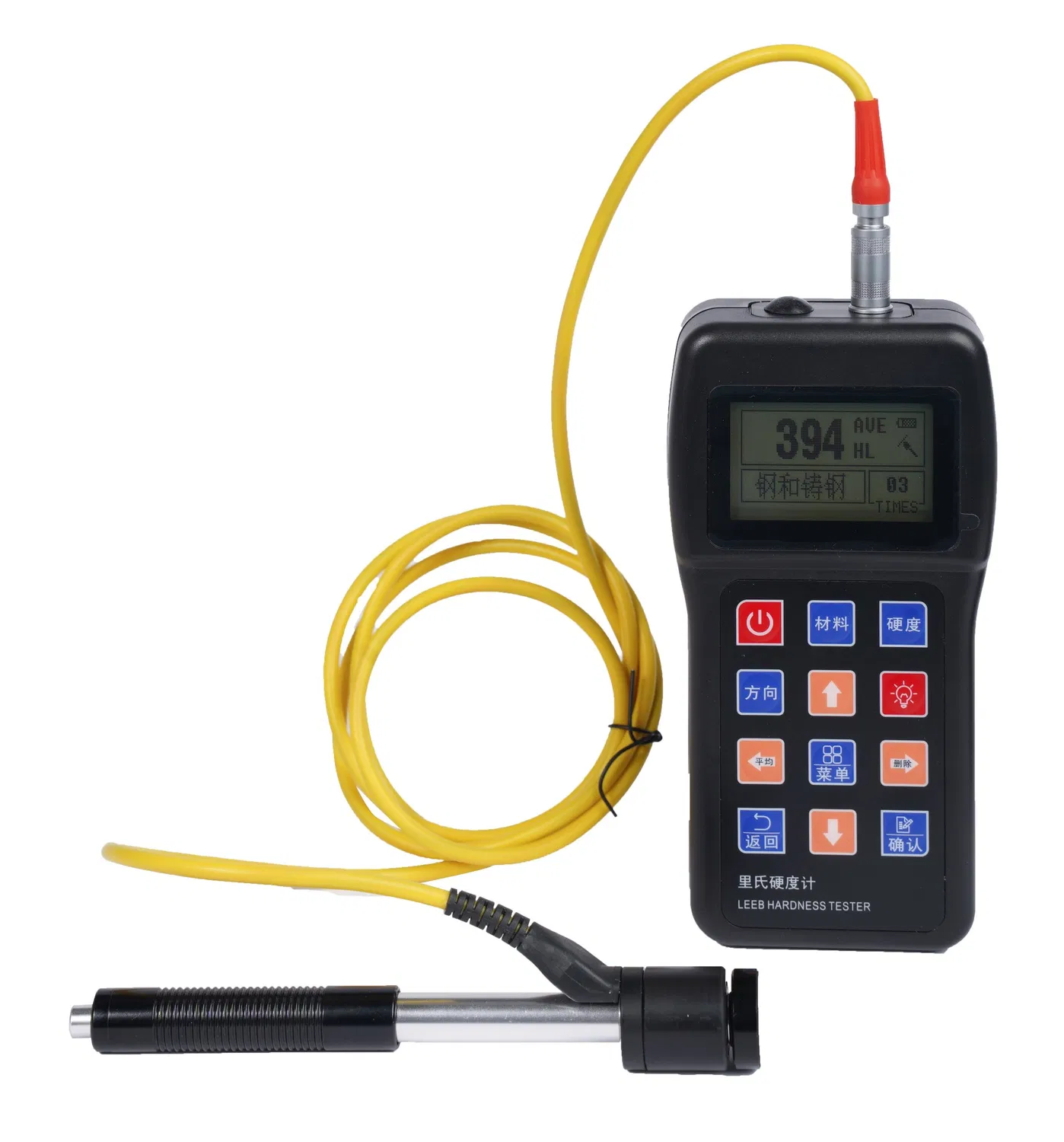

Factory Price Leeb Stainless Steel聽Hardness聽Tester聽Portable Leeb聽Hardness聽Tester聽For Steel

Measuring materials: Hardness measurement of steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel and other materials.

Unique features: Equipped with high-precision D-type sensor, with support frame, high-brightness large screen, no viewing angle.

Main uses:

Machining industry, especially suitable for on-site hardness testing of large parts and non-detachable parts

Hardness of installed machinery or permanent assembly parts.

Mold cavity hardness.

Hardness of heavy workpieces

Failure analysis of pressure vessels, steam turbine generator sets and their equipment

Hardness of workpieces with very narrow experimental space

Hardness of bearings and other parts

Material differentiation in metal material warehouses

Rapid detection of multiple measuring parts in a large range of large workpieces

Functional features:

Design based on standard: “Technical Conditions for Leeb Hardness Tester” JB/T 9378-2001; using D-type high-precision impact device;

Full Chinese display, menu-based operation.

It can be equipped with 7 different impact devices, which do not need to be recalibrated when replaced, and can automatically identify the type of impact device.

It supports the measurement of multiple hardness systems.

It can store 373~2688 groups (impact times 32~1) of single measurement values, average values, measurement date, impact direction, times, materials, hardness system and other information.

The upper and lower limits of the hardness value can be set in advance, and an automatic alarm will be issued when the limit is exceeded, which is convenient for users to test in batches.

The display software calibration function.

Use two AA batteries, which is convenient and efficient.

Ultra-low power consumption power management, with ultra-long working and standby time.

Technical parameter:

Measuring range (170-960)HLD,(19-651)HB,(13.5-101.7)HRB,(17.9-69.5)HRC,(59.1-88)HRA,(80-1042)HV,(30.6~102.6)HS

Measuring direction Any (360掳)

Applicable materials Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel

Indication error and indication repeatability D-type impact device 卤6HLD (indication error) 卤6HLD (indication repeatability)

Hardness scale Shore (HS), Leeb (HL), Brinell (HB), Rockwell (HRC/HRB/HRA), Vickers (HV) and other 7 types

Upper and lower limit setting range (170-960)HLD

Indication calibration With indication software calibration function

Data storage 373~2688 groups (impact times 32~1)

Continuous working time About 360 hours (without backlight)
