4XC Trinocular Inverted Metallographic Microscope (Bright Field and Polarized Light)
Metallographic Sample Preparation
Overview

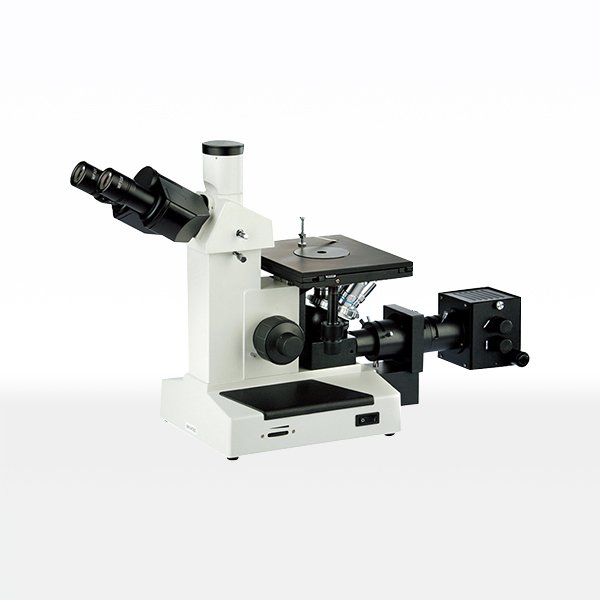

The 4XC is a trinocular inverted metallographic microscope used mainly to identify and analyse the internal structure of metals. It is an important instrument in the study of metallography and is used for casting and smelting work, heat-treatment research, raw-material inspection, and metallographic analysis after material processing, as well as for teaching, laboratory testing and factory quality appraisal in colleges and universities.
The inverted base has a large support area and a solid body, which makes the centre of gravity of the instrument low, stable and reliable, and the eyepiece and the support surface are inclined at 45 degrees so that observation is more comfortable over a long session. The trinocular head lets a digital camera be fitted, so the same specimen can be examined through the eyepiece and shown as a real-time image on the computer display for editing, saving, analysis and printing.
Technical Specifications
| Parameter | Value |
|---|---|
| Optical system | Infinity chromatic aberration correction system |
| Optical magnification | 50 – 500 times |
| Eyepiece | High eye point wide field of view plan eyepiece PL10X / 18 mm |
| Objective lens | Long working distance plan achromatic professional metallographic objective lens 5X, 10X, 20X, 50X |
| Lighting | Adjustable 6 V 30 W halogen lamp (optional LED lamp), aperture diaphragm and field diaphragm |
| Observation head | Trinocular observation head (digital photography and eyepiece observation simultaneously) |
| Objective lens converter | Four-hole converter (optional five-hole converter) |
| Stage | Three-layer mechanical mobile platform, area 180 × 155 mm, stroke 75 × 40 mm |
| Focus adjustment | Coarse motion 38 mm stroke per revolution; 2 µm fine adjustment accuracy; elastic adjustment mechanism with low hand position |
| Software | JX2015 professional metallographic analysis software |
| Optional 1 | Eyepieces PL15X / 13 mm, PL20X / 10 mm, PL10X / 18 mm measuring eyepiece |
| Optional 2 | Plan achromatic metallographic objective LMPL100X / 0.80 WD 2.0 mm |
| Optional 3 | Mechanical metallographic sample polishing machine; metallographic sample grinding and polishing machine |
| Optional 4 | Digital camera, digital camera interface and digital camera; metallographic polishing consumables; J-2015 metallographic image analysis software; five-hole converter |
Bright field and polarized light observation
The 4XC has two optical observation modes, bright field and polarized light. Bright field is the standard method for examining a polished and etched specimen and reveals grain boundaries, phases and the general structure of the material. Polarized light adds a second contrast mechanism for specimens that respond differently to polarised illumination, so features that are hard to see in bright field can be brought out. Having both methods in one microscope means the instrument covers the routine metallographic work of a laboratory and the more specialised examinations without a change of equipment.
Optics, magnification and image quality
The microscope uses professional metallographic objective lenses and flat-field eyepieces, with good imaging quality, high resolution and comfortable observation. The optical system is an infinity chromatic aberration correction system covering a magnification of 50-500 times, using long working distance plan achromatic metallographic objectives of 5X, 10X, 20X and 50X with a high eye point wide field of view plan eyepiece PL10X / 18 mm. Illumination is an adjustable 6 V 30 W halogen lamp with aperture and field diaphragms; an LED lamp is available as an option, and a five-hole objective converter can replace the standard four-hole unit.
Stage, focusing and digital documentation
The stage is a three-layer mechanical mobile platform with an area of 180 × 155 mm and a stroke of 75 × 40 mm, and focus is adjusted with a coarse motion of 38 mm per revolution and a fine adjustment accurate to 2 µm, using an elastic adjustment mechanism with a low hand position for comfortable operation. The trinocular head accepts a digital camera, and the microscope is supplied with JX2015 professional metallographic analysis software, so the metallographic structure can be graded on the computer and the corresponding metallographic report produced. Optional accessories include measuring eyepieces, a 100X plan achromatic objective, polishing machines and consumables, a digital camera and the J-2015 image analysis software.
Frequently Asked Questions
What is an inverted metallographic microscope?
It is a microscope in which the objective is below the specimen stage, so the polished surface faces down and is observed directly. The specimen sits flat and level without being clamped between slides, which suits metallographic work.
What observation methods does the 4XC support?
Two methods: bright field and polarized light.
What is the magnification and which objectives are used?
The optical magnification is 50-500 times, using long working distance plan achromatic metallographic objectives of 5X, 10X, 20X and 50X with a PL10X / 18 mm plan eyepiece.
Can the microscope be connected to a camera and analysis software?
Yes. The observation head is trinocular, so a digital camera can be fitted and a real-time image shown on the computer display for editing, saving, analysis and printing; the microscope is supplied with JX2015 metallographic analysis software, and a J-2015 image analysis package is an option.
What illumination and stage does it use?
An adjustable 6 V 30 W halogen lamp with aperture and field diaphragms (LED lamp optional), and a three-layer mechanical mobile platform of 180 × 155 mm with a 75 × 40 mm travel.
