WDW-10 10kN Electronic Universal Tensile Strength Testing Machine

1. Applications &聽functions

WDW series computer control electronic universal testing machine are suitable for tensile, compression, bending test of metal, steel, alloy, rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.

2. Main Features

This machine adopts the most advanced and reliable load frame structure of ball screw electric mechanical universal testing machine, which equips alternating servomotor for driving crosshead, photoelectric encoder for displacement measure and high precision load cell to assure the high resolution of test.

Equipped with the computer &Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. Control software can automatically finger out routine data, such as tensile聽modulus of elasticity, extend rate after rupture, non-proportional extend strength Rp0.2, etc.

They can conform to the requirements of聽testing standards聽ASTM A370, ASTM E4, ASTM E9, ISO6892, ISO7438, ISO7500-1, EN 10002-4, GB/T228-2002, etc.

3. Main Technical Specifications:

Model

WDW-5/10/20

WDW-50

WDW-100

WDW-200/300

WDW-500/600

Max Load Capacity

5kN/10kN/20Kn

50kN

100kN

200kN/300kN

500kN/600kN

Load amplification

no range

Class of Machine

0.5

Load聽Range

0.4%-100%FS

Load Accuracy

Within聽卤0.5%聽of indicating load

Load Resolution

1/300000

Range聽of Deformation

4%-100%FS

Resolution of Deformation

0.01mm

Accuracy of Displacement

Within聽卤0.5%of indicating load

Resolution of Displacement

0.01mm

Range of Testing Speed

0.005 mm/min -500 mm/min, stepless and arbitrary setting

Effective Tensile Space

600mm

Max Compression Space

600-800mm

Power supply

1-phase, 220V-240V, 50Hz/60Hz

Or specified by users

3-phase, 380V-415V, 50Hz/60Hz

Or specified by users

Smart Software for Tensile /Compression/3 point bending Testing /Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machine

Servo motor installed聽with high accuracy, 24months for quality guarantee. /Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machine

Load cell with 0.5 accuracy and the 1 accuracy , US Transcell Brand / also we have China Local Brand.

China Factory Auto Software Control 100kn Universal Test Machine for Material Mechanical Testing

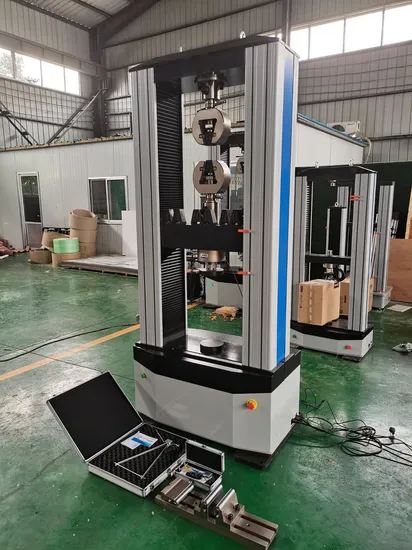

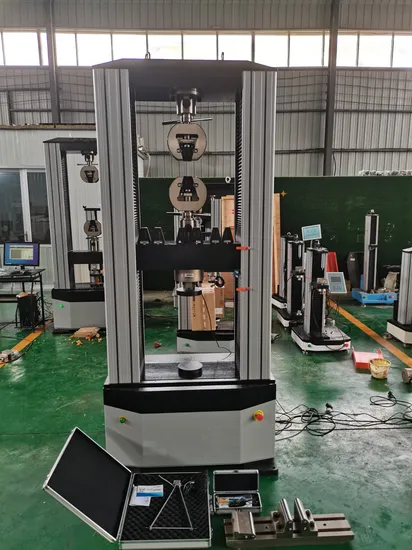

Workshop display, quality inspection, package and delivery

4. Standard Accessories

Description

Remarks

Control PC

Dell brand

Control card & software

Printer

HP Color Inkjet printer

Servo motor & servo driver

Imported Japanese Panasonic Brand

High-precision Load Cell

Imported American Celtron Brand

High-precision Photoelectric Encoder

High-precision Ball Screw Lead

Tension Test Accessories

Wedge grips for round and flat specimen

Compression Test Accessories

Round Compression Plate

Bending Test Accessories

3-point bending flexure

Electronic Extensometer

5. Widely Used for rubber /plastic material / steel bar/steel Rebar etc…

By brand as the measuring system by computer host, complete set of machine test, the working state control, data acquisition, processing, display the print test results, and other functions; Equipped with testing machine for Chinese intelligent test package, according to national standards, international standards, or provide the standard method of measurement of various materials, the mechanical property parameters of bin to statistics and data processing; Then the output of various format required reports and curve pattern.

Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machine

The most Popular Model WDW-100kn Material Yield Strength universal testing machine Price
