Introduction:

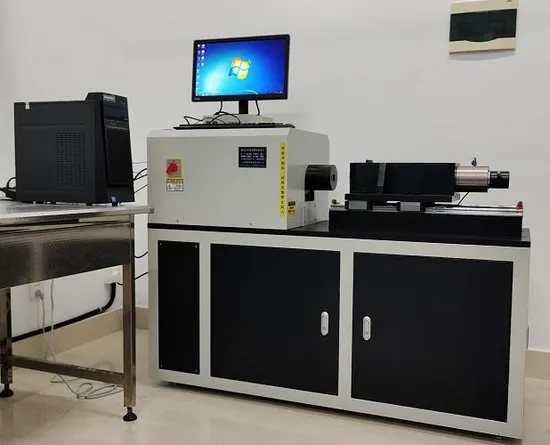

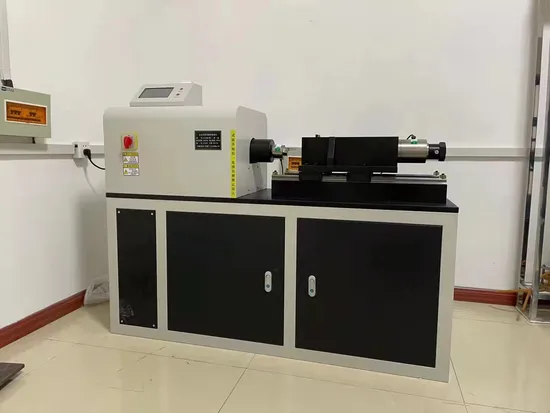

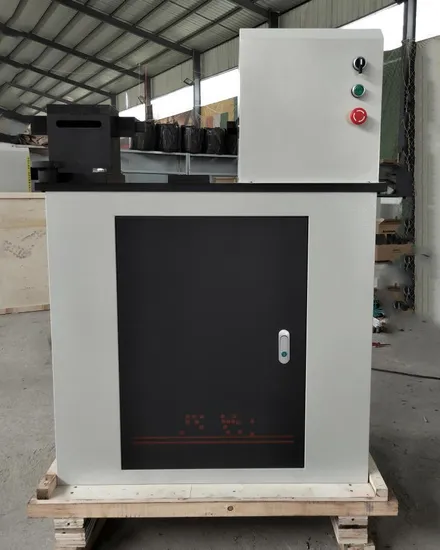

The microcomputer controlled high-strength bolt detector (NCW-300PE) is designed and manufactured with reference to the standard requirements of GB50205-2001 “Engineering Acceptance Specifications”. It can detect the axial force, torque, and torque of large hexagonal head high-strength bolt connection pairs (M6, M8, M10, M12). Coefficients, detection, display and automatic calculation and printing. When the axial force reaches the value specified in the standard, the detector emits a beep and records the test data. At the same time, the detector automatically calculates the torque coefficient based on the detected axial force and torque and displays it automatically; when a set of tests is completed, the detector Automatically calculate the average axial force, average torque, average torque coefficient, standard deviation and coefficient of variation of N test pieces; enter the test number, model, grade and specification of high-strength bolts; the control system can cyclically update 1,000 sets of data Store and read and print at any time.

It has parameter backup and recovery functions, automatic calibration function, peak hold monitoring and sensor overload protection functions according to the detection requirements of high-strength bolts. In order to facilitate the user to connect to the computer, an RS232 interface is set up; the data can be transferred to the computer for further processing and a report can be printed out.

Test Principle

The detection of large hexagonal bolts is to connect two sensors through the controller to collect the axial force and torque of the sample respectively. The two sensors bear the combined force of the sensors through the combination of mechanical structures to ensure that they are loaded and unloaded at the same time. When the set point is reached, When setting the standard pretension force value, record and calculate the torque coefficient under the corresponding torque;

Structural features:

1. The host adopts the human-machine design principle and is easy to operate.

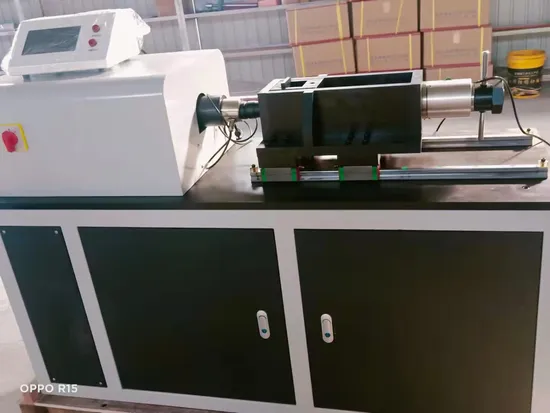

2. The bolt-mounted test mold is installed on the linear guide rail, making it easy to install and adjust the test piece.

3. Humanized software design, the test process can be completed with one click.

4. The lower end of the main body is equipped with a tool box for easy use and storage by test operators.

5. The input end uses a reducer for uniform loading, which greatly improves the authenticity of the test results.

6. Sensor overload protection prompts and other functions: pre-tension force, torque enters the upper and lower limits with alarm prompt function.

7. The test area is equipped with a protective cover, which is reliably connected to the fuselage and easy to open and close (optional).

Refer to the following standard test methods:

GB50205-2001 “Project Acceptance Specifications”

GB/T1231-2006 “Technical conditions for the use of high-strength large hexagonal head bolts, large hexagonal nuts and washers”

Users can also provide relevant technical standards, such as ISO, ASTM, EN, DIN, and JIS, and implement control of test methods and related data collection and processing according to the standards provided by users.

Main Technical Parameter:

Item NCW-300PE

Voltage: Control system 220V AC

Voltage: Loading system 380V AC

Power frequency 50Hz

Axial force detection range 20-300kN

Torque detection range 10-1000Nm

Bolt specifications big hexagon聽M16/20/22/24/27/30

Bolt length 30~200mm

Axis force resolution: 卤1/300000 code, no binning throughout, resolution remains unchanged

Torque resolution: 卤1/300000 code, no binning throughout, resolution remains unchanged

Axial force measurement accuracy 卤1.0%

Torque measurement accuracy 卤1.0%

Repeatability Better than 1%

twist direction Forward Reverse

Platform spindle center height >=100mm

relative resolution 0.5%

control method computer

Display method Computer LCD display

data processing Special measurement and control system

Packing List

Name Unit Qty

Test main cabinet Set

1

Dedicated controller Set 1

Windows-specific software Set 1

Lenovo/HP brand computers PC 1

HP A4 printer PC 1

Controller power cord PC 1

control signal line PC 1

Axial force sensor 300kN (Youheng brand) PC 1

Axial force sensor signal line PC 1

Torque sensor 1000 Nm (Youheng brand) PC 1

Torque sensor signal line PC 1

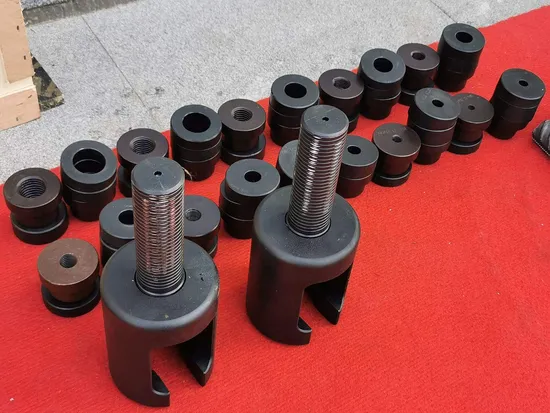

Gravity sleeve M6, M8, M10, M12 PC Each 1

Bolt outer baffle M6, M8, M10, M12 PC Each 1

Bolt inner baffle M6, M8, M10, M12 PC Each 1

Anti-rotation plug-in board M6, M8, M10, M12 PC Each 1

Plug board positioning block PC 1

Precision Planetary Cycloidal Pinwheel Reducer PC 1

Taiwan PDF brand high-precision heavy-duty guide rails Pair 1

Reducer full coverage protective cover PC 1

Three 380V motors PC 1

Certificate Copy 1

warning sticker Copy 3

user’s Guide Copy 1

Packing List Copy 1
