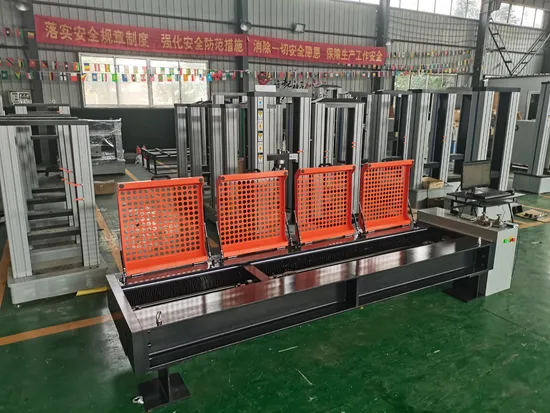

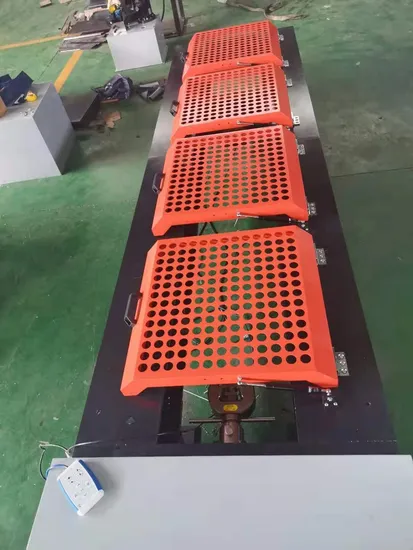

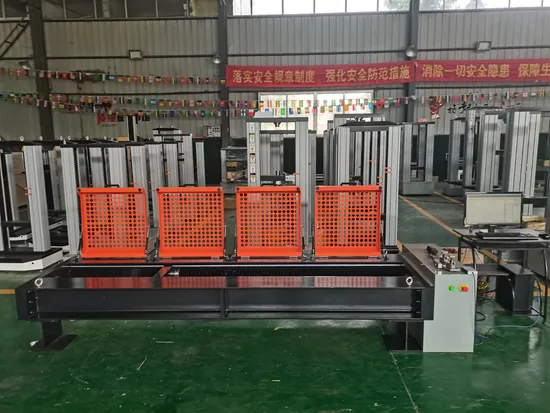

ETM-20 2 Tons Electronic Loading Horizontal Tensile Test Machine

1. Applications &聽functions

WDW series computer control electronic universal testing machine are suitable for tensile, compression, bending test of metal, steel, alloy, rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.

2. Main Features

This machine adopts the most advanced and reliable load frame structure of ball screw electric mechanical universal testing machine, which equips alternating servomotor for driving crosshead, photoelectric encoder for displacement measure and high precision load cell to assure the high resolution of test.

Equipped with the computer &Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. Control software can automatically finger out routine data, such as tensile聽modulus of elasticity, extend rate after rupture, non-proportional extend strength Rp0.2, etc.

They can conform to the requirements of聽testing standards聽ASTM A370, ASTM E4, ASTM E9, ISO6892, ISO7438, ISO7500-1, EN 10002-4, GB/T228-2002, etc.

500N 1000N 10kN 20KN Material Mechanical Universal testing machine for Rubber Plastic Strength Testing

3. Main Technical Specifications:

20kN 2Tons Electronic Universal testing machine

WDW-100 10Tons 100kN Servo Control Auto Electronic Tensile Testing Machine

100kN 200Kn Steel Specimen Horizontal Tensile Testing Machine Price

Technical Parameters

Model

WDW-20

Max. load force

20KN

Crosshead Travel(mm)

1000

Effective tensile space (mm)

700

Effective Test width (mm)

400

Crossbeam travel speed(mm/min)

0.001-1000

Load accuracy

Class 1 (class 0.5 optional)

Load range

1%-100%FS (0.4%-100%FS optional)

Load resolution

1/300000

Round specimen clamping range(mm)

4-9

Flat specimen clamping range(mm)

0-7

Tensile grip

Manual Wedge Fixture

Compression Plate(mm)

桅100×100 mm

Electronic Extensometer for metal material

YUU10/50 (optional)

Large deformation extensometer for rubber

DBX-800 (optional)

10Tons 100kN Customized horizontal tensile testing machine Price

500N 1000N 10kN 20KN Material Mechanical Universal testing machine for Rubber Plastic Strength Testing

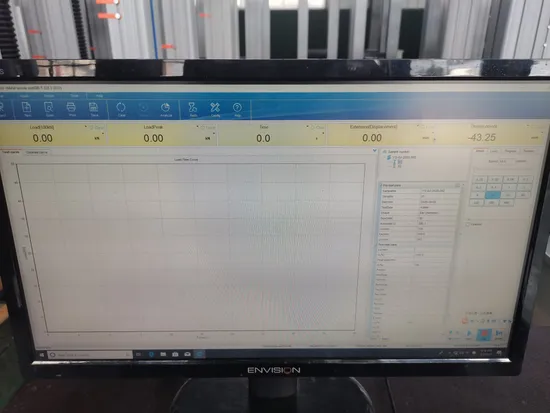

Smart Software for Tensile /Compression/3 point bending Testing /Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machine

200kN 20Tons electronic Powering universal testing machine Price

Servo motor installed聽with high accuracy, 24months for quality guarantee. /Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machine

20kN 2Tons Electronic Universal testing machine

Load cell with 0.5 accuracy and the 1 accuracy , US Transcell Brand / also we have China Local Brand.

China Factory Auto Software Control 100kn Universal Test Machine for Material Mechanical Testing

Workshop display, quality inspection, package and delivery

4. Standard Accessories

Description

Remarks

Control PC

Dell brand

Control card & software

Printer

HP Color Inkjet printer

Servo motor & servo driver

Imported Japanese Panasonic Brand

High-precision Load Cell

Imported American Celtron Brand

High-precision Photoelectric Encoder

High-precision Ball Screw Lead

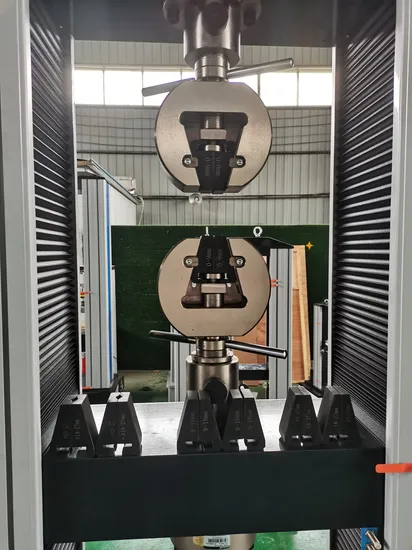

Tension Test Accessories

Wedge grips for round and flat specimen

Compression Test Accessories

Round Compression Plate

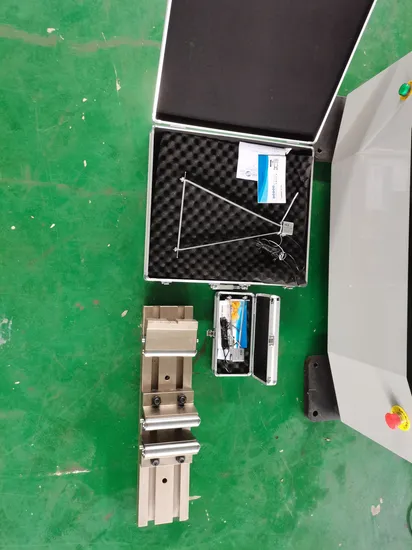

Bending Test Accessories

3-point bending flexure

Electronic Extensometer

5. Widely Used for rubber /plastic material / steel bar/steel Rebar etc…

By brand as the measuring system by computer host, complete set of machine test, the working state control, data acquisition, processing, display the print test results, and other functions; Equipped with testing machine for Chinese intelligent test package, according to national standards, international standards, or provide the standard method of measurement of various materials, the mechanical property parameters of bin to statistics and data processing; Then the output of various format required reports and curve pattern.

Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machine

The most Popular Model WDW-100kn Material Yield Strength universal testing machine Price

6. Related Products:

(Click the picture for reading more of its specification introduction )

Click the picture

Click the picture

Click the picture

Click the picture

Packaging & Shipping

7. Machinery Delivery

Electronic Loading Auto Control ASTM ISO GB JIS 100kn universal testing machine

We prepare the ocean delivery to your port, and we supply online teaching video for operating the universal Tensile Tester .
