CXGJ-10C Pipe hydrostatic Pressure Burst testing machine for PE PP-R PVC 16mm-1200mm

Application

The machine is designed and manufactured according to聽GB/T6111聽聽聽聽聽聽Thermoplastics pipes for the conveyance of fluids —-Resistance to internal pressure—-Test method聽and GB/T15560Standard test method for short-time hydraulic failure and resistance to constant internal pressure of the plastics pipes for the transport of fluids聽.聽It is suitable to determine the pressure-resisting broken time or the maximum pressure value of instantaneous blast of thermoplastic pipes and compound pipes (such as PP-R ,PP-B ,PP-A ,PE ,PE-X ,PVC ,PVC-U and PVC-C ) under long-term constant internal pressure and temperature .It is聽indispensable聽for聽manufacturers of plastic pipes and testing institutions .

The聽machine meets the following standards :

GB/T18742.1 聽Polypropylene piping systems for hot and cold water

installation – Part 1 :General

GB/T18742.2 Polypropylene piping systems for hot and cold water

installation – Part 2 :Pipes

GB/T18742.3 聽聽Polypropylene piping systems for hot and cold water

installation – Part 3 :Fittings

GB/T13663 聽聽聽聽Polypropylene pipes for water supply

GB/T15558.1 聽Buried polyethylene (PE) pipes for the supply for

gaseous fuels

GB/T15558.2Buried polyethylene (PE) fittings for the supply for

gaseous fuels

GB/T18992.1 Crosslinked polyethylene (PE-X) piping systems for hot

and cold water installation -聽Part 1 :General

GB/T18992.2 Crosslinked polyethylene (PE-X) piping systems for hot

and cold water installation -Part 2 :pipes

GB/T10002.1 Unoplasticized polyvinyl chloride (PVC-U) pipe for

water supply

GB/T10002.2 聽Unoplasticized polyvinyl chloride (PVC-U) fitting for

water supply

GB/T18993.1 聽聽Chlorinated poly (vinyl chloride) piping system for hot

and cold water installations -Part 1:General

GB/T18993.2 Chlorinated poly (vinyl chloride) piping system for hot

and cold water installations -Part 2:pipes

GB/T18997.1聽Polyethylene/Aluminum /polyethylene composite pressure

pipe-聽Part 1 :PE/AL/PE pipe overlap-welded by aluminum pipe

GB/T18997.2聽Polyethylene/Aluminum /polyethylene composite pressure

pipe-聽Part 2 : PE/AL/PE pipe butt-welded by aluminum pipe

ISO聽1167 聽聽Plastic piping systems – Thermoplastics pipes – Determination of resistance to internal pressure at constant temperature.

Feature

1.1 This instrument is used for testing a certain range of internal pressure in a long period of time of plastic pipes.

1.2聽The instrument consists of a pressure host, a pressure station, a water tank, a temperature control system and a computer software system.

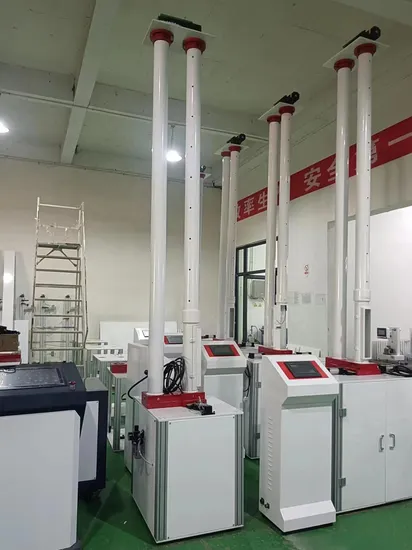

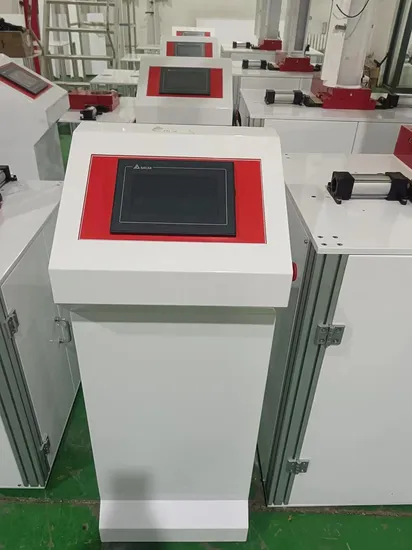

Main Frame: It consists of聽pressure micro control parts, automatic filling pressure and electric discharge pressure parts, pressure micro control part adopts the microcomputer MCU control; equipped with high resolution, high speed of 鈭?- delta 16-bit adc chip, real-time communication and computer; and it can automatically fill and relief pressure according to the situation of pressure.

Pressure Station:聽Its main function is to provide pressure to the main frame, the requirement of lower limit pressure of pressure station requirement must be higher than all tested specimen. The plunger pump of the station is made in the United States (large flow, low noise, high pressure, free maintenance).

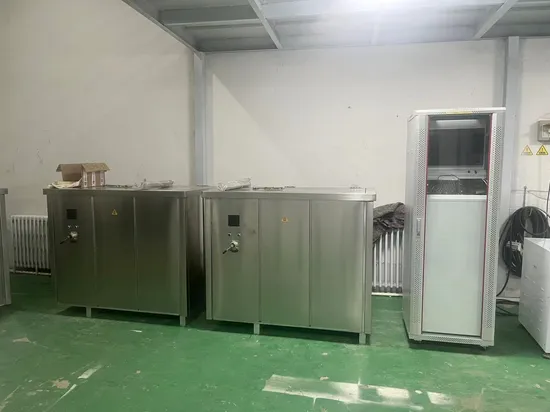

Water Tank:聽It consists of electric opening part, self-circulation part, heating part, automatic water filling part and insulation part.

Temperature Control System:聽Accurately control the temperature of the water tank, temperature display, set temperature individually. It can control the liquid level of tank at a reasonable position, at the same time it can also guarantee the temperature.

Software System:聽By connecting with RS232 serial interface to the pressure on the host, it can provide the parameters setting, calibration, pressure relief, zero, amplitude modulation, drawing the test, test records and print test reports and other functions.

2 Application

The instrument is widely used in the internal pressure test of all kinds of plastic pipes. It is the ideal testing instrument for construction industry, Plastic pipe producers, national testing sectors and the scientific research sectors.

3 Working Conditions

Following conditions must be satisfied to conduct a test:

3.1 Ambient Temperature: 10潞C~40潞C;

3.2 Ambient Temperature: 30%-80%;

3.3 Vibration-free,no corrosive medium environment;

3.4 Install and adjust the instrument to level on a solid foundation;

3.5 No strong electromagnetic interference and no strong wind resistance;

3.6 A indoor exhaust system is needed to prevent the instrume

Main specifications

Test stations :1-40

2. pressure adding range :0.4~10.000MPa

3. Max. working pressure of main聽pressure聽system 10MPa

4. high pressure piston pump

5聽.pressure controlling precision :+2% and -1% of upper and lower limit of

test pressure value聽respectively

6. resolution of pressure value :0.001Mpa

7. transformer :test pressure sampling periods is 0.1 millisecond .

8.聽timing range :0-9999h

9.聽timing precision :1S

Structure and theory

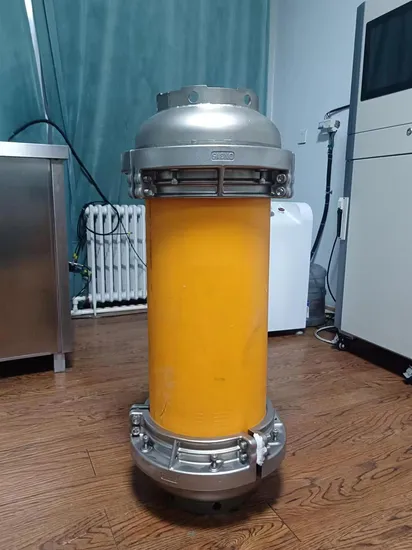

The high pressure liquid generated by high pressure pump is transported to samples in media temperature constant tanks聽through high pressure hoses聽to聽carry out聽pipe long聽time聽hydrostatic pressure tests聽after being measured by main engine of pressure control system
