Product Description

KXJU-22M聽聽Izod 聽Impact 聽Testing 聽Machine

Detailed Product Description

Touch screen display

Impact speed:

Charpy Test : 3.5m/s

3.Easy to operate

4.High quality and precision

5.Good after service

Characteristics

Digital type adopts the radial grating goniometry technology. With the characteristics of the precision high, stability good and measuring range big. Touch Screen setting parameters and shows the test result. The impact power, impact intension, angle in advanced, rising angle, calculate the sample’s average value, energy lost self-correcting. The machine is equipped with USB output,聽an be directly exported data through the U disk, with the U disk and PC software provided by our company, the data can be imported into PC to editing and printing the experimental report

1. Functions

The instrument is mainly used for the determination of impact toughness of the nonmetal materials including rigid plastic,聽reinforced nylon,聽glass steel,聽ceramics,聽cast stone,聽electric insulating materials and so on. It is the ideal testing devices for the departments including the chemical industry,聽research institutes,聽universities,聽quality inspection and so on.

2. standards-compliant

Accord with the ISO180, GB/T1843,GB/T2611,ASTM D256, JB/T 8761聽standards’ demands.

3. Technological indicators

item parameter

Model KXJJ-22M

Controlled manner Touch screen

Impact energy Izod聽test:

1J,2.75J,5.5J,11J,22J

(聽please select聽one聽or )

Speed of impact Izod聽test:3.5m/s

Pre-elevation angle of pendulum 150 degree

CXJJ-5M

Plastic Specimen Charpy Impact Testing Machine with Touch Panel Controlling

Detailed Product Description

1. Touch screen聽display

2 .聽Impact speed:聽Charpy Test : 2.9m/s

3. Easy to operate

4. High quality and precision

5. Good after service

Characteristics

Digital type adopts the radial grating goniometry technology. With the characteristics of the precision high, stability good and measuring range big. Touch Screen setting parameters and shows the test result. The impact power, impact intension, angle in advanced, rising angle, calculate the sample’s average value, energy lost self-correcting. The machine聽is equipped with USB output,聽an be directly exported data through the U disk, with the U disk and PC software provided by our company, the data can be imported into PC to editing and printing the experimental report

1. Functions

The instrument is mainly used for the determination of impact toughness of the nonmetal materials including rigid plastic,聽reinforced nylon,聽glass steel,聽ceramics,聽cast stone,聽electric insulating materials and so on. It is the ideal testing devices for the departments including the chemical industry,聽research institutes,聽universities,聽quality inspection and so on.

2. standards-compliant

Accord with the聽ISO179,GB/T1043,ASTM E23 DIN51222 ASTM D6110 standards’聽demands.

3. Technological indicators

item parameter

Model CXJJ-5M

Controlled manner Touch screen

Impact energy Charpy test:聽聽1J,2J,4J,5J(choose one)

Speed of impact Charpy test:2.9m/s

Pre-elevation angle of pendulum 150 degree

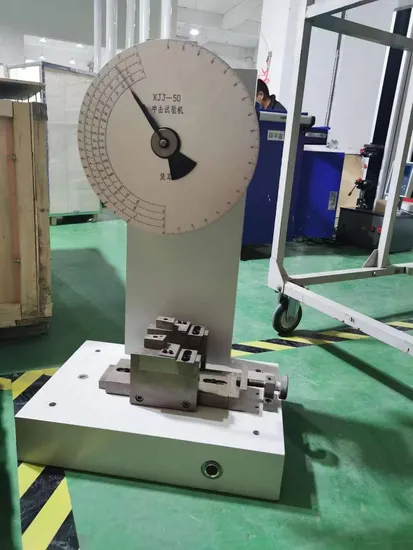

KXJ-50M聽Impact Testing Machine (Charpy & Izod)

Introduction

This testing machine is a combined multi-purpose material impact testing machine, mainly used for the determination of impact toughness of non-metallic materials such as hard plastics (including plates, pipes, plastic profiles), reinforced nylon, fiberglass, ceramics, cast stone, and electrical insulation materials. It is an impact testing machine with simple structure, convenient operation, accurate and reliable data.

It is widely used in chemical industry, scientific research units, colleges and universities quality inspection and other departments.

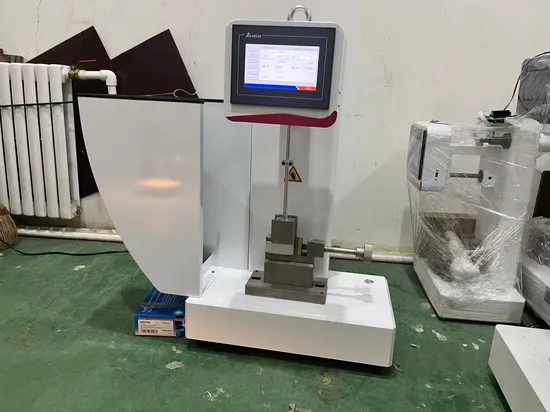

This instrument is equipped with a 10-inch full-color touch screen, input the size of the sample, calculate the impact strength and save the data according to the automatically collected energy loss value. This machine is equipped with a USB output port, which can directly export data through a U disk, and import the PC software with the U disk provided by our company to edit and print the experimental report.

Safety protection

It can automatically judge various states of the experiment to prevent misoperation.

Convenient calibration system

It can calibrate the friction loss and pre-elevation angle according to requirements at any time to ensure the accuracy of the data.

Quality that never exceeds the tolerance

The instrument uses high-hardness and high-precision bearings and shaftless photoelectric sensors to fundamentally eliminate the loss caused by friction and ensure that the friction energy loss is far less than the standard requirements.

Intelligent prompts

According to the impact situation, intelligent prompts of working conditions are given, and the experimenter is interacted with at all times to ensure the success rate of the experiment.

Standard

Following: 聽GB/T1043,GB/T2611, GB/T 3808,聽GB/T 18743聽,JB/T 8762 ,ISO179聽etc request.

Technical Parameter:

Impact speed: 3.8m/s; cantilever beam: 3.5m/s;

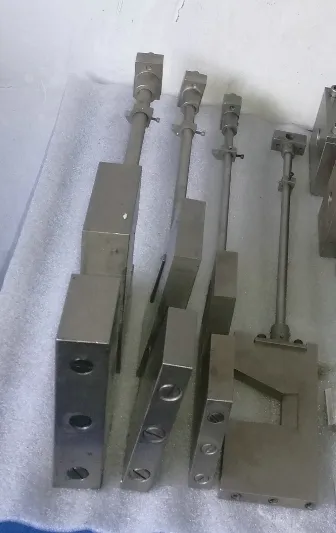

脴 Impact energy: Charpy 聽7.5J, 15J, 25J, 50J (optional)

Izod: 聽1J, 2.75J, 5.5J, 11, 22J (optional)

脴 Maximum friction loss energy: <0.5%;

脴 Pendulum pre-lift angle: 150卤1掳;

脴 Impact center distance: simply supported beam 395mm, cantilever beam 335mm;

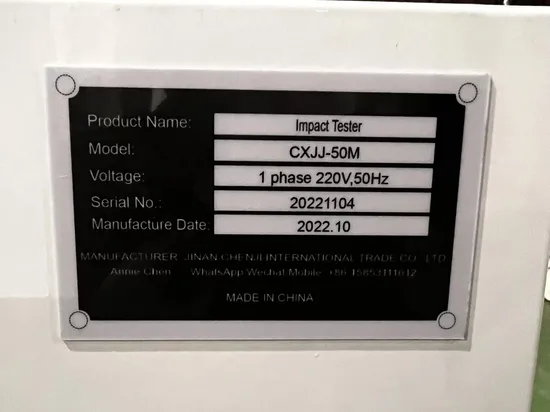

脴 Standard Power supply: 220VAC-15%~220VAC+10%, 50Hz (single-phase three-wire system).

Customized for buyer request : 聽120V 聽60Hz

Test Software: (With English聽Language )

Packaging & Shipping
